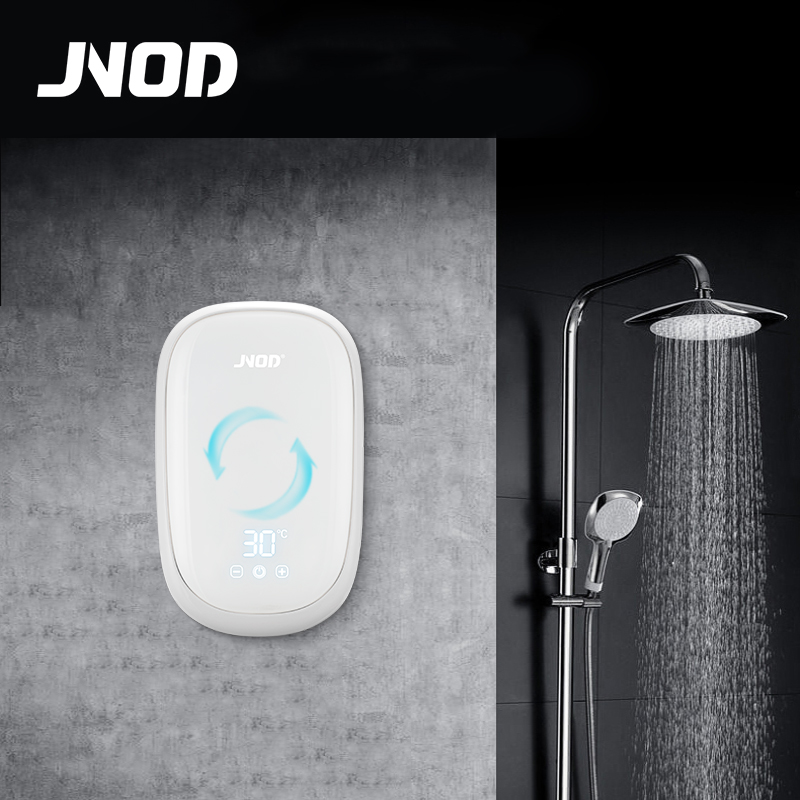

Whole House Compact Bathroom Tankless Water Heater

FA-Z is very suitable for a wide scope of application, could be for shower use and also kitchen use. Work under 220-240V 50Hz or 60Hz electricity area,
Easy touch key operation, big LED digital display shows set up temp. and outlet temp. Auto constant temperature function.
Space Savings: Compact size with pebble shape, without the inconvenience of bulky storage tanks, it does not take up much space.
Instant Endless Hot Water: Provide unending stream of hot water within 3 seconds.

Availability:
Quantity:
  • FA35Z
  • JNOD
  • 220-240V
  • 3.5-13.5kw

JNOD Electric Water Heater FA series Whole House Compact Bathroom Tankless Water Heater.

Product Introduction

A whole-house tankless water heater provides hot water on demand without the need for a large storage tank. These units are much smaller than traditional tank heaters, and can be mounted on a wall or in a closet. Tankless water heaters are very energy efficient, and can save you money on your utility bills.

*Transparent ABS case permeable to light, 5A fire rating.

FA-热水器详情页-最终版_03


*Cut Off "Standby Loss": Patent heating technology.

Endless hot water supplies within 3 seconds. up to 97% heating efficiency, minimized energy loss, saving energy and money.

FA-热水器详情页-最终版_05


*CE(LVD+EMC), CB, EU/SASO RoHS approved by SGS.

fe热水器详情+证书


*Compact appearance and unlimited supply hot water.Easy installation, retional structure easy for wire connection.

FA-热水器详情页-最终版_08


*Easy operation, automatic constant temperature & memory.

FA-热水器详情页-最终版_04


*Multiple safty protection.

Auto fault detect technique, ELCB function, anti-limescale, Electricity leakage protection, Over-heat protection, Dry-heat protection.

FA-热水器详情页-最终版_06

Model NO.
FA
Phase
1 Phase / Single Phase
Voltage & Frequency
220-240V 50/60Hz
Wattage
3.5kW
5.5kW
7kW
9kW
Max. Ampere Load
15.2A
23.9A
30.4A
39.1A
Temp. Setting Range
30-55℃   86-131℉
Overheat Protection
65℃
Termal Cut-off
95℃
90℃
95℃
Connecting Wires Section
1.5mm²
2.5mm²
4mm²
6mm²
Water Pressure
0.02-0.6MPa
Safety Class
IP25
Water flow to activate
1.2L/min
1.5L/min
Water Connection
G1/2"
Colors
Golden Pink / White / Grey
Certification
CE CB RoHs
Product Size
338*211*72mm
Inner Box Size
380*133*280mm
Carton Size (4pcs/CTN)
552*400*300mm
Loading Quantity
20'GP: 2240pcs
40'GP: 4488pcs
20'HQ: 5440pcs

Product Advantage

If you are considering upgrading your home’s water heater, a tankless model is a great option. A tankless water heater heats water on demand, which can save you money on your energy bill. They also take up less space than a traditional water heater and can last up to 20 years with proper maintenance.

Technical Parameters

When it comes to tankless water heaters, there are a few key technical parameters that you need to be aware of. Here are the most important ones:

1. First and foremost, you need to know the maximum flow rate that your tankless water heater can handle. This is particularly important if you have a large household with multiple bathrooms. Make sure to check the specs carefully so that you don't end up with a unit that can't keep up with your demand.

2. Another important parameter is the temperature range. Most tankless water heaters can only heat water up to 140 degrees Fahrenheit. However, some models (usually the more expensive ones) can go as high as 180 degrees Fahrenheit. If you live in an area with very cold winters, you might want to opt for a model with a higher temperature range so that you can still get hot water even when the outside temperature is very low.

3. The last key parameter is energy efficiency. Tankless water heaters are generally more energy-efficient than traditional storage tank water heaters. However, there is a wide range in terms of efficiency levels, so make sure to compare different models before making your final decision.


KE蓝_11KE蓝_12KE蓝_13
