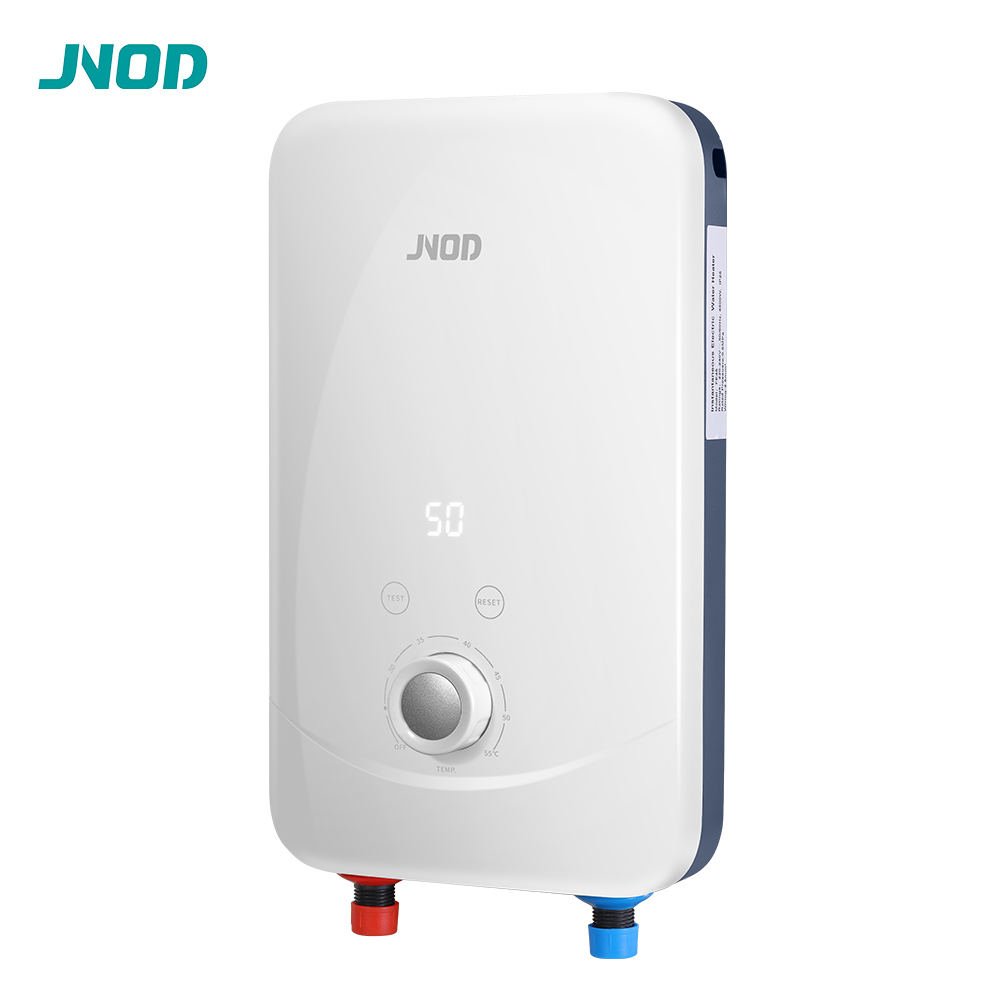

Different Capacity Bathroom Instant Water Heater For Sink

FE-H series have ultra-wide power range, could work under 220-240V 50Hz or 60Hz electricity area, suitable for many usage purpose. Stepless rotary knob for easy temperature setting with constant temperature function. Big LED digital display shows set up temp. and outlet temp.
Space Savings: Compact size, without the inconvenience of bulky storage tanks, it does not take up much space.
Instant Endless Hot Water: Provide unending stream of hot water within 3 seconds.
Availability:
Quantity:
  • FE45H
  • JNOD
  • 220-240V
  • 3.5-7kw

JNOD Electric Water Heater FEH series Different Capacity Bathroom Instant Water Heater For Sink.

Product Introduction

When it comes to picking the right bathroom instant water heater for your sink, there are a few key things to consider. First, you'll need to decide on the capacity that best suits your needs. Depending on the size of your sink and how often you use it, you may need a higher or lower capacity unit.

Once you've selected the right capacity unit for your needs, you'll need to decide on the installation type. Most units can be installed either under the sink or on the wall, but some models must be installed in a specific location. Make sure you read all of the instructions carefully before making your final decision.

Finally, you'll need to choose a model that best fits your budget. There are a variety of different prices for bathroom instant water heaters, so be sure to shop around and compare features before making your purchase.



*Cut Off "Standby Loss": Patent heating technology.

 Endless hot water supplies within 3 seconds. up to 97% heating efficiency, minimized energy loss, saving energy and money.

fe-h热水器详情(210602)_04


*CE(LVD+EMC), CB, EU/SASO RoHS approved by SGS.

fe-h热水器详情(210602)_01-1


*CONVENIENCE.

Stepness knob for easy temperature setting.

fe-h热水器详情(210602)_06


*Automatic constant temperature.

fe热水器详情_05


*High strength ABS splash proof casing--Multiple safty protection.

IP25 waterproof, Auto fault detect technique, ELCB function, anti-limescale, Electricity leakage protection, Over-heat protection, Dry-heat protection.

fe-h热水器详情(210602)_07


Model NO.
FE-H
Phase
1
Voltage & Frequency
220-240V 50/60Hz
Wattage
3.5kW
4.5kW
5.5kW
7kW
9kW
Max. Ampere Load
15.2A
19.6A
23.9A
30.4A
39.1A
Temp. Setting Range
30-55℃ 86-131℉
Overheat Protection
60℃
Termal Cut-off
90℃
Connecting Wires Section
2.5mm²
4mm²
6mm²
Water Pressure
0.02-0.6MPa
Safety Class
IP25
Min.Water Flow to Activate
1.0L/min
1.2L/min
1.5L/min
Water Connection
G1/2"
Product Size
400*225*103mm
Inner Box Size
480*285*130mm
Carton Size (4pcs/CTN)
560*495*300mm
Loading Quantity
20'GP: 2240pcs
40'GP: 4488pcs
20'HQ: 5440pcs

Product Advantage

There are many benefits to using an instant water heater for your bathroom sink. Perhaps the most obvious benefit is that you will have hot water instantly, without having to wait for the water to heat up. This can save you a lot of time in the morning when you are trying to get ready for work or school.

Another great benefit of using an instant water heater is that it can save you money on your energy bill. If you are only using hot water for a short period of time, then you will not have to waste any energy heating up a larger tank of water. This can add up to significant savings over time.

Finally, instant water heaters are much more compact than traditional storage tank heaters. This means that they take up less space in your bathroom, which can be a major advantage if you have a small bathroom.

Technical Parameters

1. Power: 3KW-6KW
2. Voltage: 220V-240V
3. Frequency: 50/60Hz
4. Waterproof Rating: IPX4
5. Heating Time: ≤35s
6. Ambient Temperature: -10℃~45℃
7. Inlet Water Pressure: 0.02Mpa~0.8Mpa


KE蓝_11KE蓝_12KE蓝_13
